Black Synology DSM7.X 9th and 10th generation integrated display i915 driver test

1. Automatically create and replace i915.ko method, by wjz304

2022.9.13 Updated one-click python script, for example, the integrated display device ID queried: 0x9BC8,

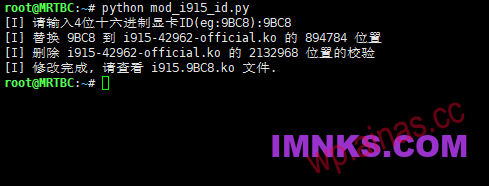

Execute the following code to automatically generate i915.ko for automatic replacement. After execution, the system needs to be restarted to take effect:

sudo -i

wget http://code.imnks.com/zip/mod_i915_id-0913.py

python mod_i915_id-0913.py

#Enter graphics card ID: 9BC8

2. Manually create i915.ko method

1. Obtain the CPU integrated display device ID

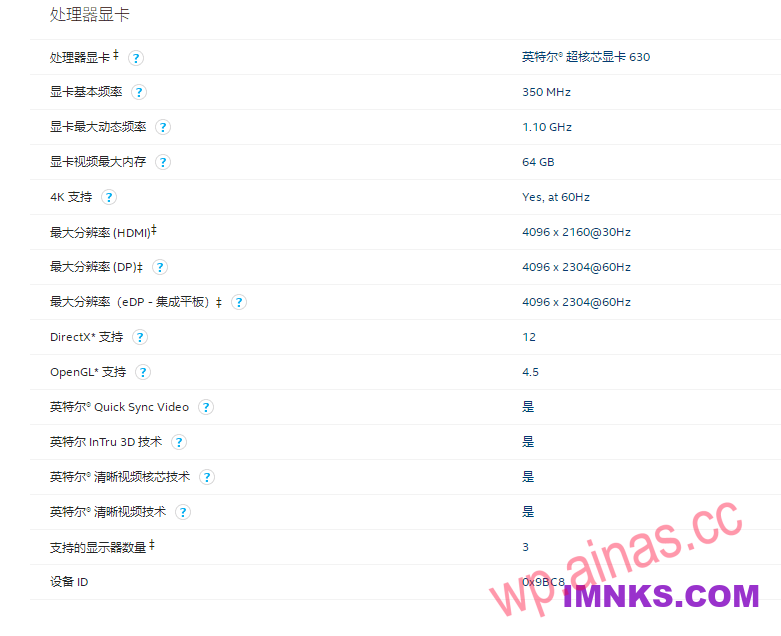

openIntel Product Specifications Web PageSearch the CPU model, for example: i3-10105, and find the integrated display device ID: 0x9BC82. Replace the ID in i915.ko

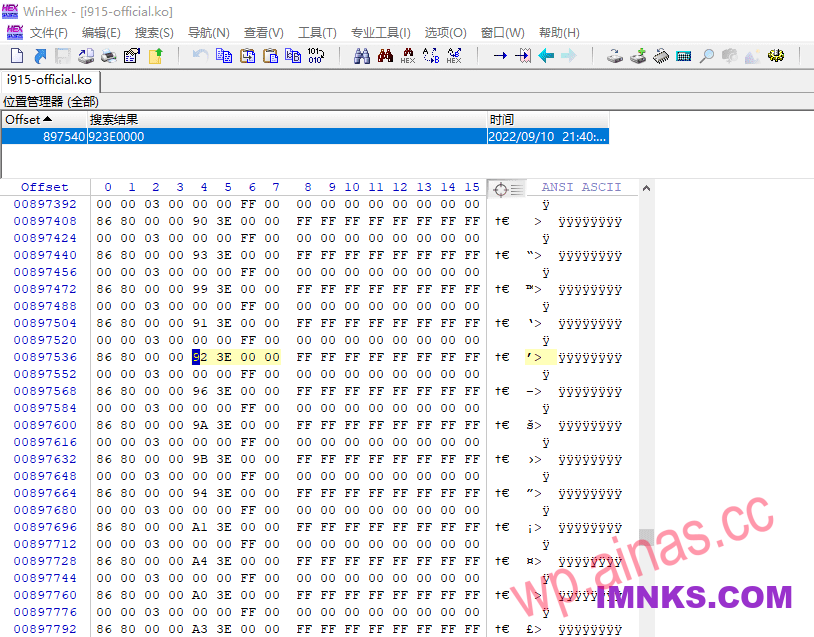

Generally, the ID of HD610 is replaced, which is 3E92 or 3E93. Tool:WinHexSearch – Find the hexadecimal value: 923E0000. Directly modify 923E to C89B. It is optimistic that the ID is written in reverse in pairs!3. Delete the driver signature

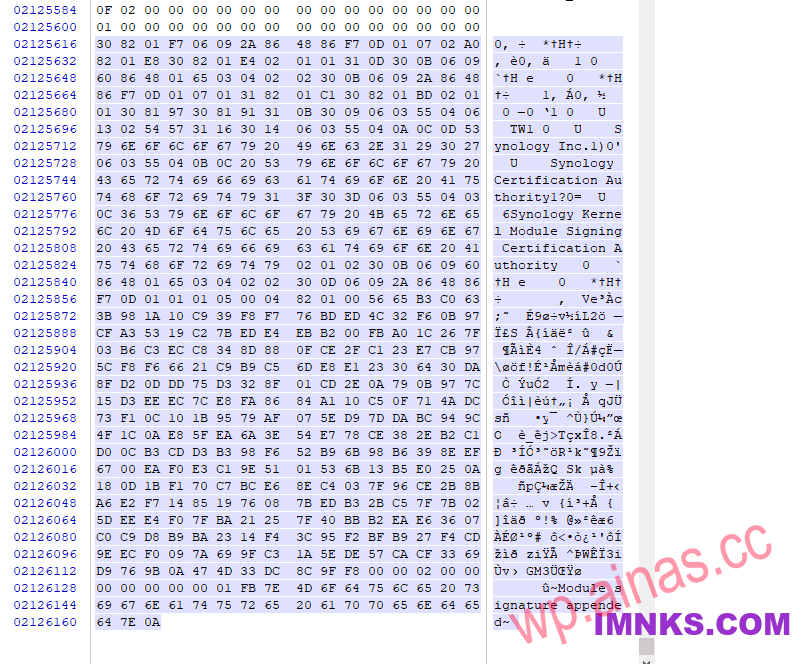

Go to the end of the i915.ko file, delete the signature data starting with 3082, edit-remove, and then save the file!
